74HC74 (74HC74PW) (SMD) Dual D-type flip-flop with set and reset; positive-edge trigger
Kategori
Marka
Stok Kodu
K150812003
Fiyat
0,60 USD + KDV
27,41 TL den başlayan taksitlerle!!
27,41 TL

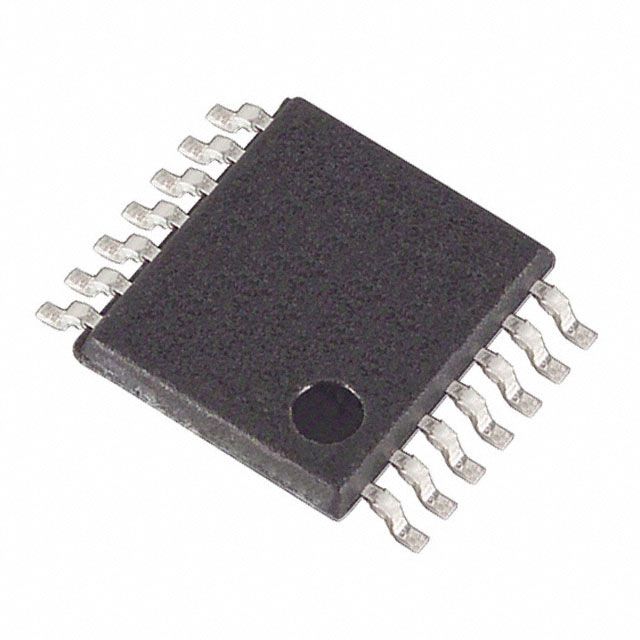

74HC74 (74HC74PW) ; Dual D-type flip-flop with set and reset; positive edge-trigger (TSSOP-14)
| Number of Bits per Element | 1 |
|---|---|
| Frequency - Clock | 82MHz |
| Max Propagation Delay @ V, Max CL | 37ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2 V ~ 6 V |
| Current - Quiescent | 40µA |
| Input Capacitance | 3.5pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
Bu ürüne ilk yorumu siz yapın!
