2SB1359 / 2A, 100V, PNP

Type Designator: 2SB1359

Material of transistor: Si

Polarity: PNP

Maximum collector power dissipation (Pc), W: 15

Maximum collector-base voltage |Ucb|, V: 100

Maximum collector-emitter voltage |Uce|, V: 100

Maximum emitter-base voltage |Ueb|, V: 5

Maximum collector current |Ic max|, A: 2

Maksimalna temperatura (Tj), °C: 175

Transition frequency (ft), MHz:

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 2000

Noise Figure, dB: -

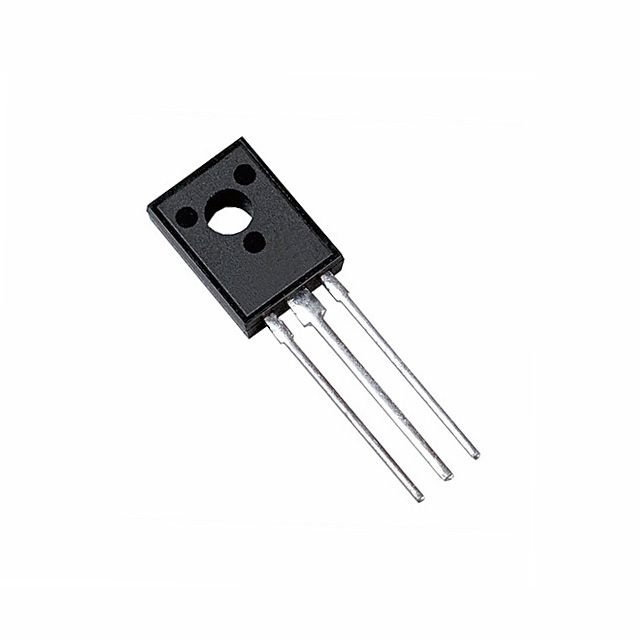

Package of 2SB1359 transistor: TO126
