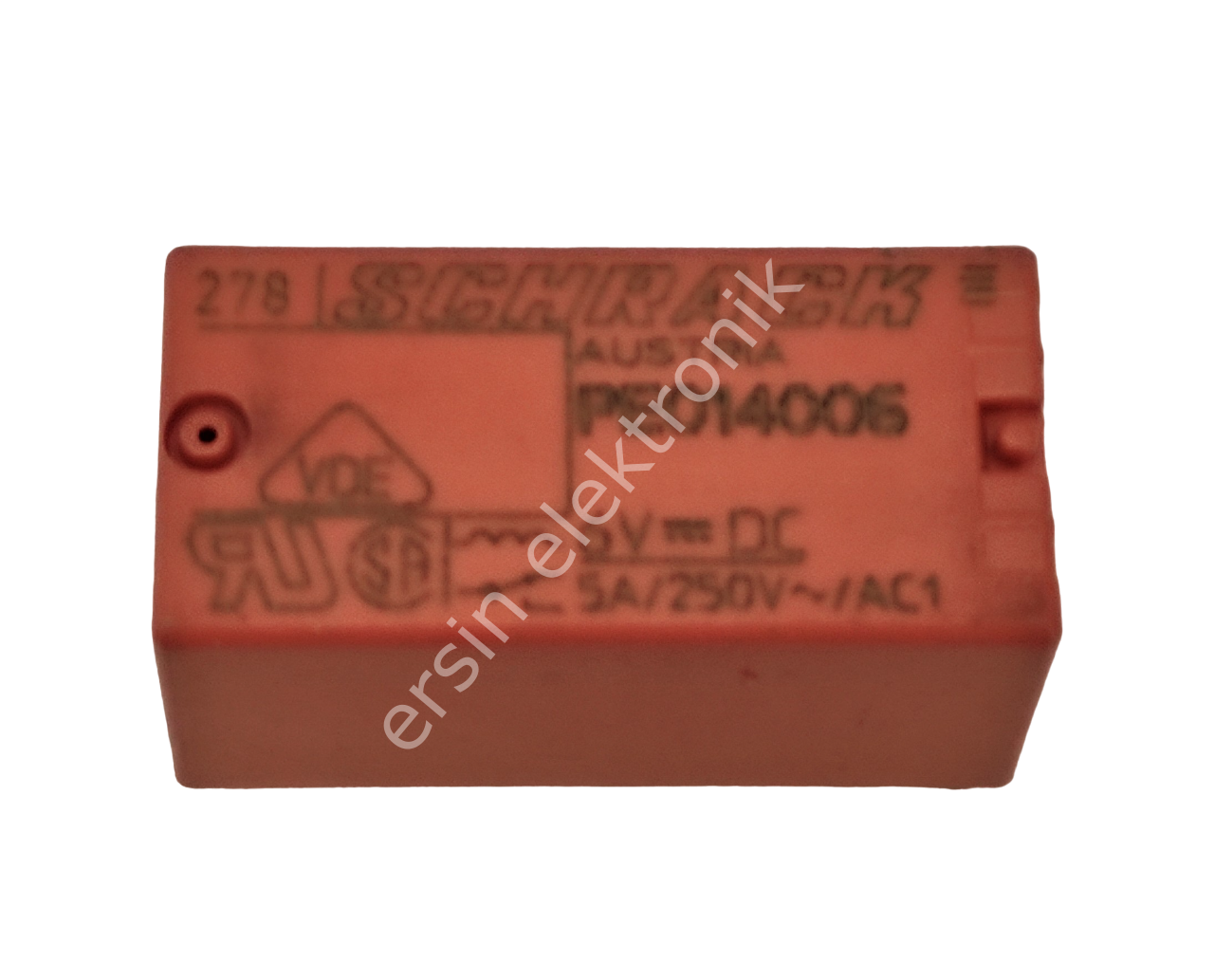

PE014006 (6V) / Schrack Röle
Kategori
Marka
Stok Kodu
K150506007
Fiyat
4,00 USD + KDV
27,60 TL den başlayan taksitlerle!!
154,81 TL
PE014006 (6V) / Schrack Röle
| Datasheets | PE Series |
|---|---|
| Product Photos | PEO140 Series |
| Catalog Drawings | PE Series PE Series Circuit |
| Featured Product | Plug-In Relays PE Series Relays |
| 3D Model | 1393219-3.pdf |
| PCN Design/Specification | (1)-1393219-y Product Improvements 16/Apr/2015 |
Standard Package  |
25 |
| Category |
Relays |
| Family |
Power Relays, Over 2 Amps |
| Series | PE, SCHRACK |
| Packaging |
Tube |
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Coil Current | 40mA |
| Coil Voltage | 5VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 5A |
| Switching Voltage | 400VAC - Max |
| Turn On Voltage (Max) | 3.8 VDC |
| Turn Off Voltage (Min) | 0.5 VDC |
| Operate Time | 8ms |
| Release Time | 8ms |
| Features | Sealed - Flux Protection |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | Silver Nickel (AgNi) |
| Coil Power | 200 mW |
| Coil Resistance | 125 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Online Catalog | PE, SCHRACK Series |
| Other Names | 1393219-3 PB353 |
