BSX75 / 0.8A, 25V, NPN
Kategori
Stok Kodu
EE16052023(I168)
Fiyat
2,25 USD + KDV
16,61 TL den başlayan taksitlerle!!
93,18 TL
BSX75 / 0.8A, 25V, NPN ;
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.43
Maximum collector-base voltage |Ucb|, V: 40
Maximum collector-emitter voltage |Uce|, V: 25
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.8
Maksimalna temperatura (Tj), °C: 175
Transition frequency (ft), MHz: 100
Collector capacitance (Cc), pF: 10
Forward current transfer ratio (hFE), min: 100
Noise Figure, dB: -

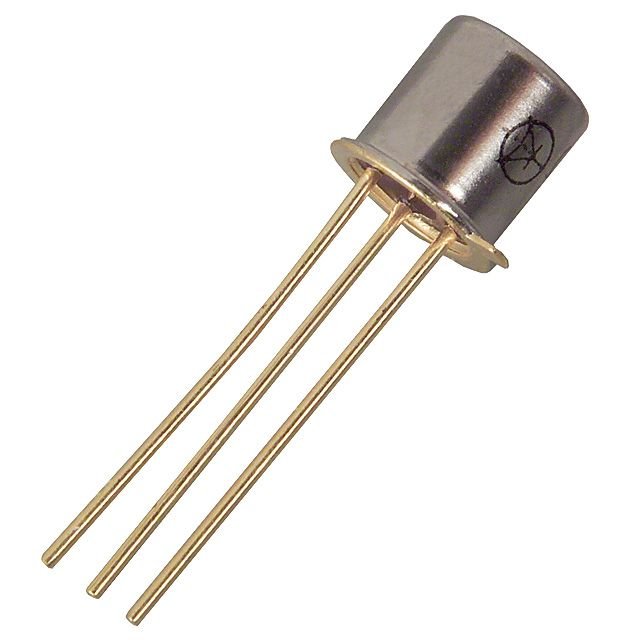

Package of BSX75
transistor: TO18
Bu ürüne ilk yorumu siz yapın!
